Ruger American Lock Ring Wrench

Dale Hegstrom • December 10, 2018

Procrastination

I’ve been procrastinating for a while about creating a blog, but now I’ve found the perfect opportunity.

I’d like to introduce our LRW which is short for Ruger American Lock Ring Wrench. I became a fan of the Ruger American rifle a few years ago. The American’s price, ruggedness, and features make it a natural for a working truck gun. Of course, after you play with a gun for a while, you start to get ideas how you can tinker with it to make it even better.

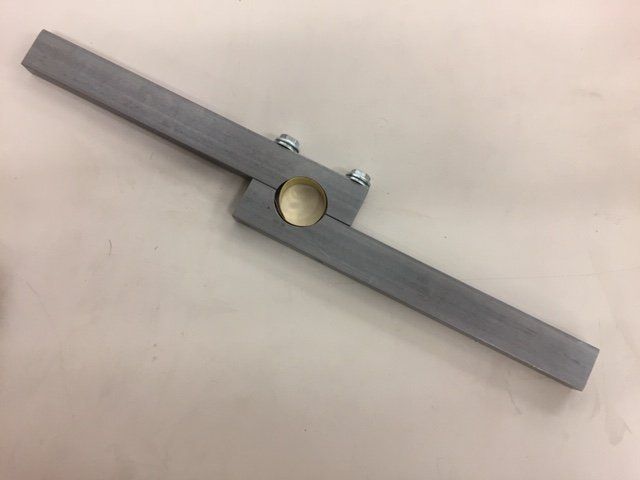

I had been putting together a .223 Ackley on a Remington 700 with a 27” 1-8” twist barrel for a long- range rifle that would be cheap to handload rounds for. I didn’t really want to shoot hundreds of rounds fire forming brass through my Krieger barrel, so I decided to re-barrel the .300 Blackout barrel on my Ruger American. I decided to use a factory Remington take-off barrel on the Ruger and form the Ackley brass while hunting prairie dogs. Much to my surprise, I discovered no one was making a wrench for the American and a Savage wrench wouldn’t work. What I came up with is a rugged economical design. (Image 1)

I thought customers might find it interesting how I re-machined the Remington barrel to fit on the American. The steps are shown as follows:

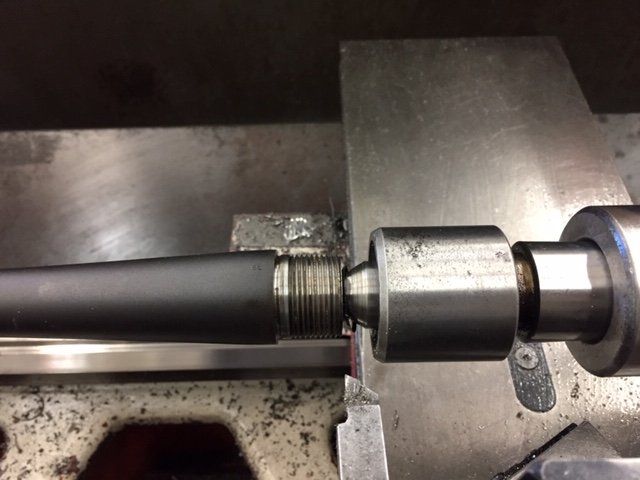

Remove the Remington bolt nose counterbore (Image 2)

Turn down the barrel cylinder to match the Ruger (Image 3)

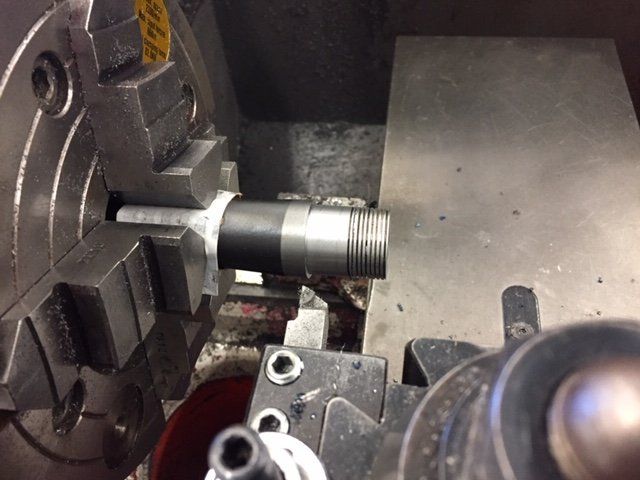

Reduce the tenon diameter from 1.060” to 1” and extend the shoulder (Image 4)

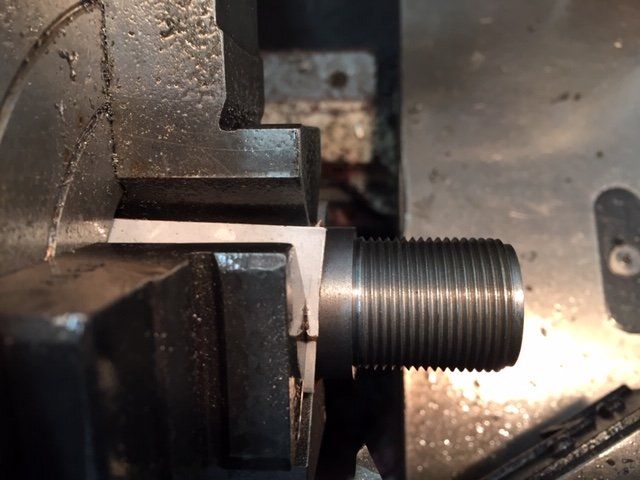

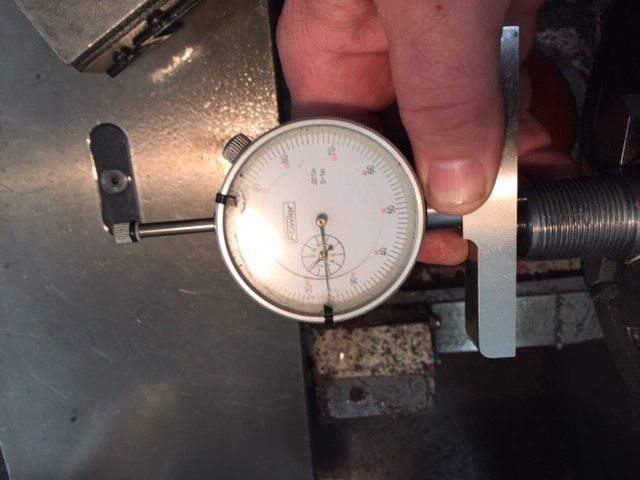

The thread pitch on the Ruger and Remington are same at 16 t.p.i. so to get the best thread possible we “pick-up” the threads that are remaining from the old threads. (Image 5)

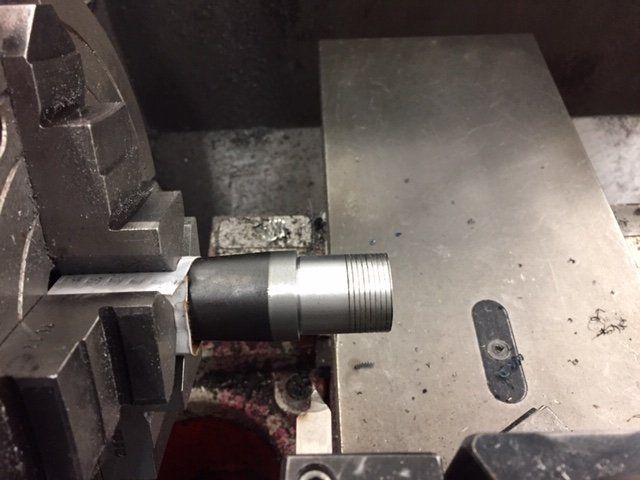

Then cut the threads to final depth to match the Ruger action (Image 6)

Ream the chamber to .223 Ackley and headspace at .125” with the .223 Ackley Guage (Image 7)

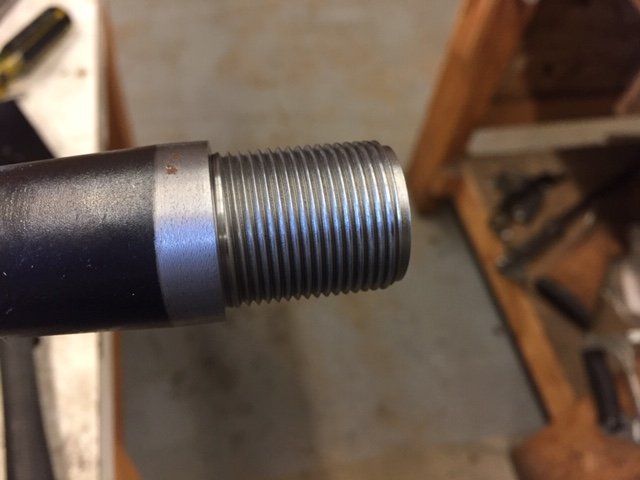

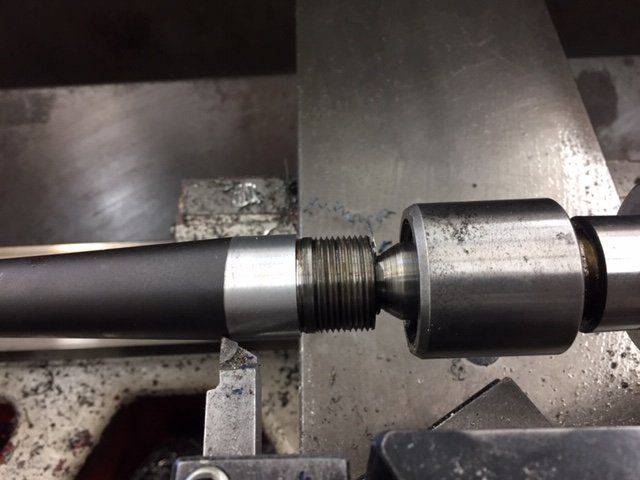

The finished barrel (Image 8)

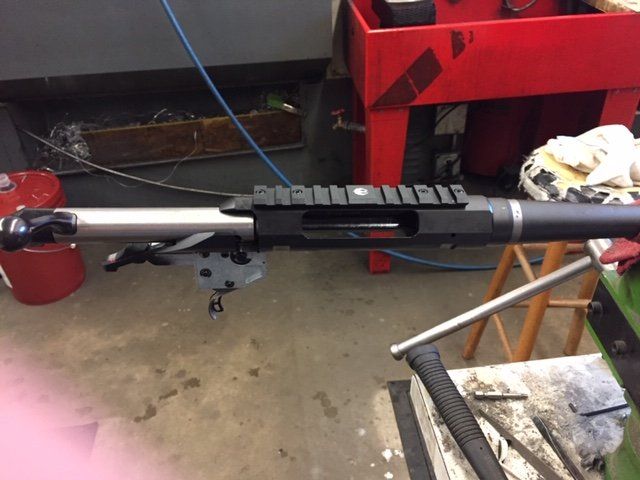

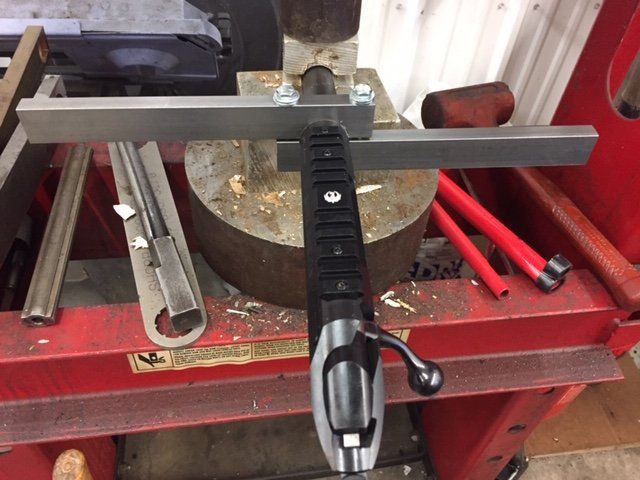

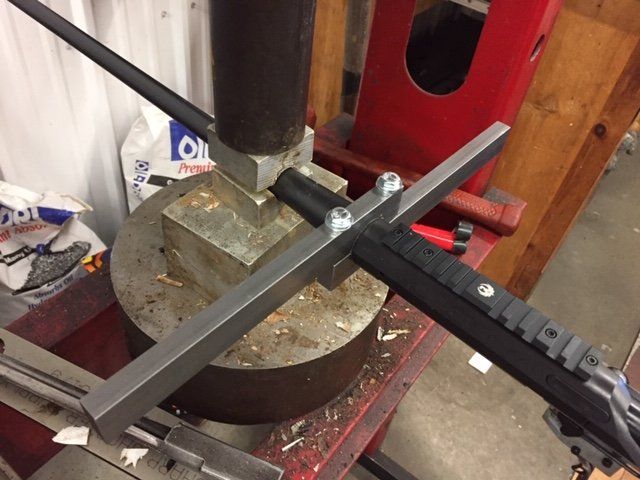

Setting the headspace on the action with the LRW9 (Images 9 & 10)

With the LRW removed (Image 11)

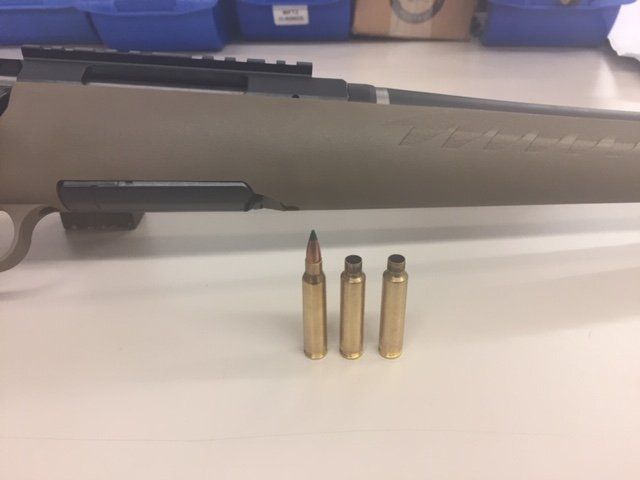

Standard .223 Remington and 2 fireformed cases (Image 12)

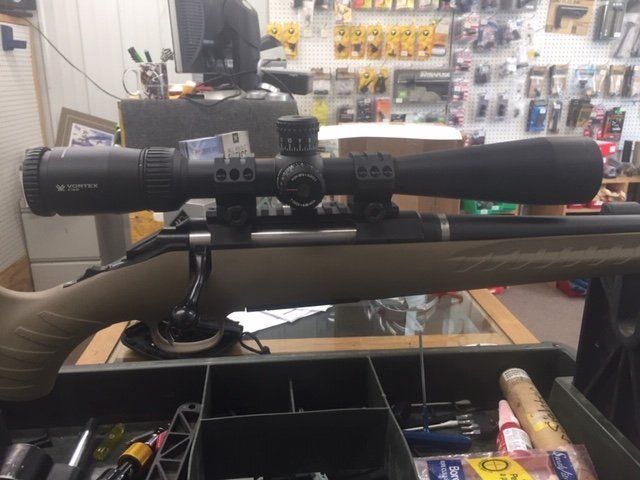

The finished product ready to go prairie dog shooting (Image 13)

Dale Hegstrom, Owner, Gunsmith

Rifle Magazine's Custom Corner Features LCG

By Jill Ellingson • October 23, 2019

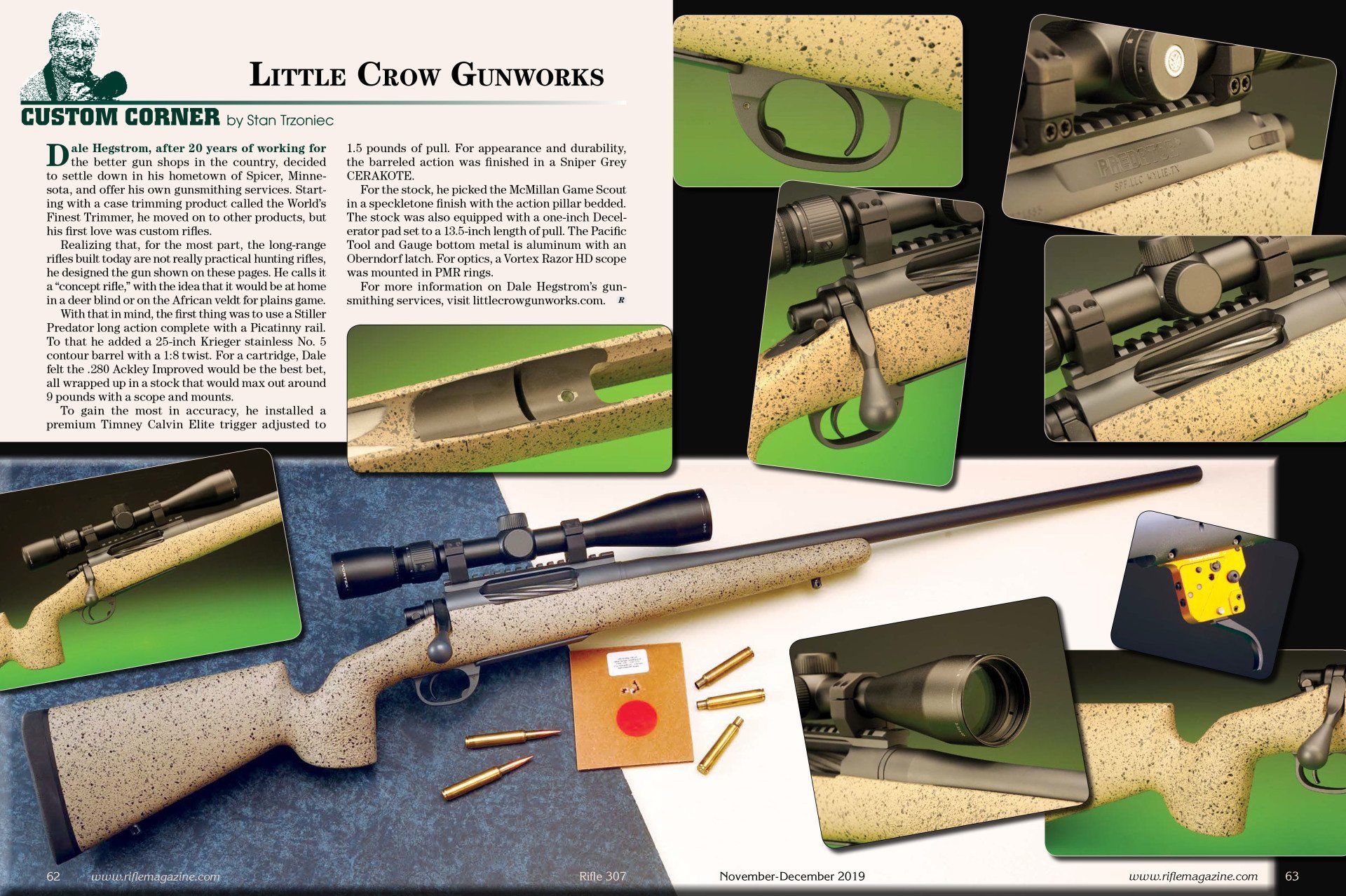

Check out the LCG Featured article in Rifle Magazine's Custom Corner, by Stan Trzoniec. This article highlighted a custom built .280 AI as well as a fantastic, personal write up on LCG. We would like to thank Wolf Publishing and Stan Trzoniec for beautiful crafted expose'.
